Highlights

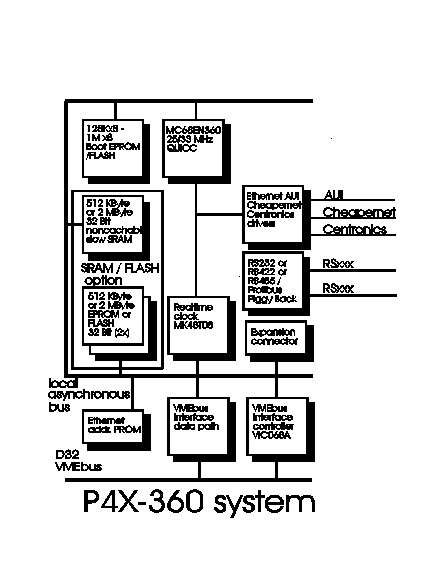

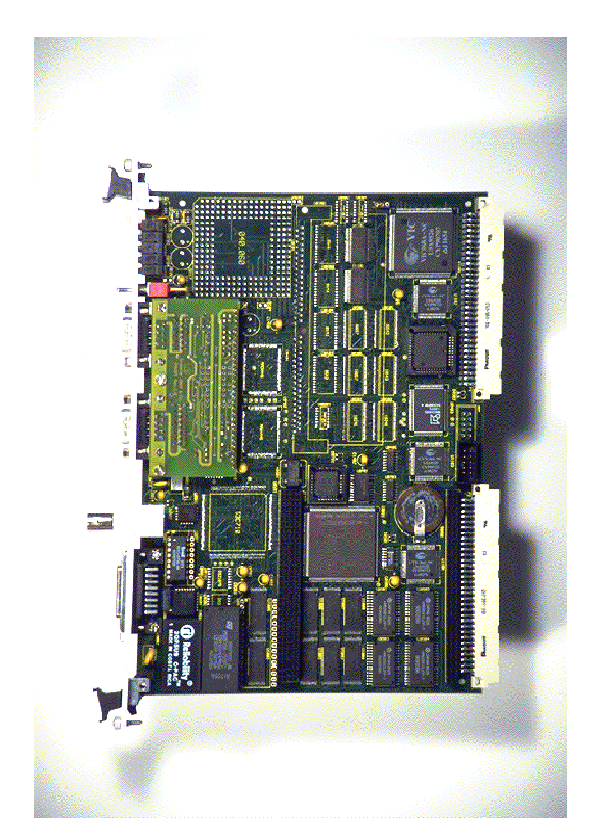

The "P4X 360 system" is a 6U VMEbus board build around the Motorola MC68EN360 Quad Integrated Communications Controller (QUICC).

It is ideal for low cost embedded real-time monitor, control and server applications.

The usage of the MC68EN360 as intelligent multiple IO controller provides a large offering of interfaces: Ethernet, parallel port, three serial ports configurable as RS232, RS422, second ethernet or Profibus.

The VMEbus interface uses the VIC068A gate array to provide a complete state of the art backplane transmission media.

The combination of the high performance VMEbus and the IO versatility of the QUICC puts low cost features into a high performance single board VMEbus computer.

Features

• 32 bit CPU32+ kernel
• MC68EN360 Quad Integrated Communications Controller (QUICC) providing timers, ethernet, serial and parallel ports
• Ethernet AUI port or cheapernet interface
• three serial ports configurable as RS232, RS422, second ethernet and Profibus via serial piggyback module
• Centronics compatible parallel interface
• 32 bit, 512 Kbyte or 2 MByte SRAM bank with battery backup
• two 32 bit, in circuit programmable flash memory banks with 512 Kbyte or 2 Mbyte capacity each
• 8 bit wide JEDEC socket for eprom or flash memory
• 8K x 8 NVRAM and time-of-day clock with battery backup
• 64 Byte PROM containing a unique ethernet address
• VIC068A VMEbus interface gate array and CY7C964 data and address path companion chips providing a complete state-of-the-art VMEbus interface
• local asynchronous bus expansion connector for mezzanine card
• 10 LED indicators for function and error monitoring
• reset and abort switch on front panel
• easy connection printer and remote reset switch via J2 backplane connector
• Background Debug Mode (BDM) connector for onchip emulation

VMEbus Interface

The "P4X 360 system" VMEbus interface has been optimized for operation in a multiprocessor environment. By using the VIC068A gate array, more than just the standard VMEbus functions are supported. One of these additional features is the message passing mechanism which allows together with the main memory slave capability the efficient implementation of multiprocessor systems.

The VIC068A chip supports all standard data transfer modes of the VMEbus as master and slave interface. Additionally 32 bit block transfer is supported. The write posting feature provides a major relief of the cpu or the bus master. Data that has to be transferred via the VMEbus is buffered in fast latches and, afterwards, transferred without any further interaction of the cpu - any unnecessary cpu cycles are avoided.

The "P4X 360 system" has a software configurable VMEbus interrupter and interrupt handler module. The following parameters may be selected : priority of an interrupt request, and the number and priority of any interrupt request to be handled. This way every possible interrupt structure may be applied, either a distributed or a central interrupt system.

 The board is able to assume all functions of a VMEbus system controller : generation of the system clock, reset function, watchdog timer, iack daisy chain driver, and four level arbitration (single level, priority, round robin).

 Peripheral Interfaces

The communication channels are implemented using the Motorola MC68EN360 / QUICC controller chip.

The QUICC delivers the ethernet / IEEE 802.3 protocol on the first SCC channel. An external manchester encoder is installed on the board.

The "P4X 360 system" offers two different network media interfaces :

• AUI attachment unit interface for connection of an external transciever (via DSUB15)
• 10BASE2 thin ethernet (also called cheapernet) via BNC connector

The P4X has three serial ports which may configured with different line driver types by means of a serial piggyback module.

Actually five piggyback options are available :

The standard delivery is with two RS232 ports installed.

In order to connect a printer, a centronics compatible parallel interface is provided.

The local asynchronous bus is routed to the mezzanine board expansion connector.

An M-module carrier board can be plugged into this slot to permit the construction of compact controller systems without loading the VMEbus.

 Manufacturing quality

 The SimTech products are manufactured using high quality components. Each board is submitted to a 12 hours burn in.

 Technical specifications

 main cpu

• CPU32+ kernel contained in the Motorola MC68EN360
• clock rate : 25 MHz

IO processor

• Motorola MC68EN360 Quad Integrated Communications Controller (QUICC) providing timers, ethernet, serial and parallel ports

Static RAM

• One 32 bit bank of battery backed low power static ram.
• The total data capacity is 512 Kbytes or 2 Mbytes..
• The data is held during power down with a lithium type accumulator.
• The typical backup time is 3800 hours (160 days).

Flash memory

• Two banks of 32 bit wide flash memory.
• total capacity of 512 Kbytes or 2 Mbytes per bank.
• 5V operation for read, write and erase.
• minimum of 100 000 write/erase cycles.

Boot eprom

• A conventional JEDEC compatible 32 socket is available for use as boot eprom.
• The following memory chips can be used :

• The flash memories are in circuit programmable with +5V only supply for read, write and erase.

VMEbus (IEEE STD 1014)

• VIC068A VMEbus interface gate array and CY7C964 data and address path companion chips
• DTB master : A16-A32, D08-D32, BLK
• DTB slave : A16-A32, D08-D32, BLK
• arbiter : RR/PRI
• interrupt handler : IRQ1-7
• interrupt generator : level 1 to 7
• system controller : yes, jumperable
• interprocessor communication support including four global mailbox interrupts, four module mailbox interrupts and five mailbox registers
• master and slave write posting

Ethernet

• controller : SCC1 on QUICC
• 64 byte prom containing unique ethernet address (also available as system ID)
• manchester encoder : AM7992B
• AUI port DB15 female connector on front panel
• cheapernet transciever : AM7996
• isolated 10BASE2 BNC connector on front panel
• second ethernet AUI port via P4XSP3 piggyback

Counters / Timers

• controller : QUICC
• periodic interrupt timer PIT
• four general purpose 16 bit timers or two 32 bit timers

Watchdog Timers

• separate cycle watchdog timer on each of the two busses : asynchronous and VMEbus.

Asynchronous serial ports

• controller : SCC2 and SCC3 on QUICC
• RS232 or RS422 drivers
• input termination resistors for RS422 drivers
• DB9 male connectors on front panel

Profibus port

• controller : SCC3 on QUICC
• software support via QUICC RAM microcode option
• isolated RS485 interface
• termination and idle bus state detection hardware
• DB9 female connector on front panel

Parallel Port

• controller : PIP on QUICC
• Centronics compatible
• bipolar driver devices external to the QUICC for industry environment compatibility
• printer connection via J2 backpanel P4XBP

Mezzanine Card Slot

• complete asynchronous bus
• IDMA channel
• interrupt channel
• bus request / grant channel

Background debug mode (BDM) connector

• 10 pin BERG header
• standard Motorola pinout

Board Size

• Card height 233,4 mm (9,2 in.)
• Card depth 160,0 mm (6,3 in.)
• Front panel height 261,8 mm ( 10,3 in.)
• Front panel width 19,8 mm (0,8 in.) without mezzanine card
• Front panel widht 39,6 mm (1,6 in.) with mezzanine card

Power Requirements

• Only the +5V supply is required for normal operation.
• +12V are required when external ethernet transciever is connected to the AUI port

other frontpanel elements

• 10 LED indicators (3 are user programmable)
• reset switch
• abort switch

Backpanel elements (on P4XBP)

• Centronics connector
• remote reset switch connector

Environmental

• operating temperature : 0° C to + 55°C, forced air cooling

Regulations

• EMI / RFI protection filters to ease customer system integration

Ordering information

1. P4X base board :

standard configuration :

- 128K boot eprom

- no DRAM

- no SCSI Interface

- VMEbus Interface

- SRAM

- Flash

other options on request

- 4,8,16 or 32 Mbyte DRAM

- 512 K or 1 M SRAM

- 512 K, 1 M or 4 M Flash

- SCSI Interface

- board without VMEbus interface

2. P4X serial piggyback

standard configuration :

P4XSP2 RS232 option

other options on request :

 Data sheet revision : 1.2
