Miscellaneous MGR Screen Shots

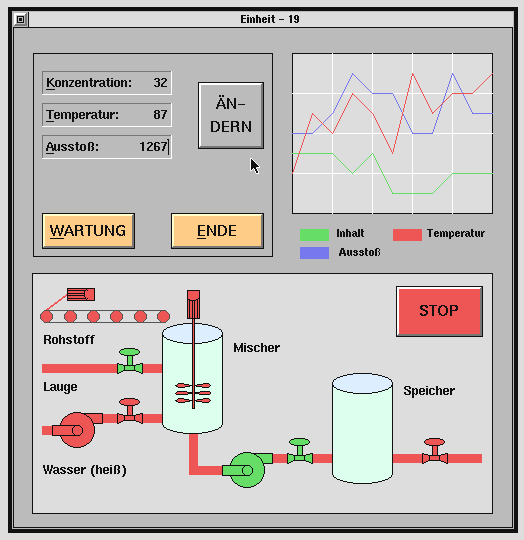

Process Visualization

A process visualization demonstration

Image Processing

This is the user interface of a image processing system created with MGR.

A keypad for touchscreens

A numerical keypad for touch screens

Machine control panel

This is an excerpt from a machine control panel.

Graphs

This is the display window of a statistic program showing the code (upper graphs) and static data (lower graphs) size of the MGR server (OS-9/68xxx version) since 1989.The values for the monochrome server are drawn red, the values for the color server are drawn green.
